Product Description:
Main Parameters Of Steel Structure Warehouse
Length: The total length of the plant needs to be determined. Whether there is a requirement for the column spacing, the column spacing is generally 6m, but it can also be 7.5m, 9m, or 12m;
Span: generally 9-36m, with 3m as a multiple, when the span is large, it is necessary to determine the design of several spans;
Height: indoor floor to the intersection of steel column axis and steel beam axis (clear height of plant), without lifting the crane should be 4.5-9m; when there is a crane, the specific model and lifting height of the crane should be determined;
Whether the roof and walls need to be insulated.
Main Components

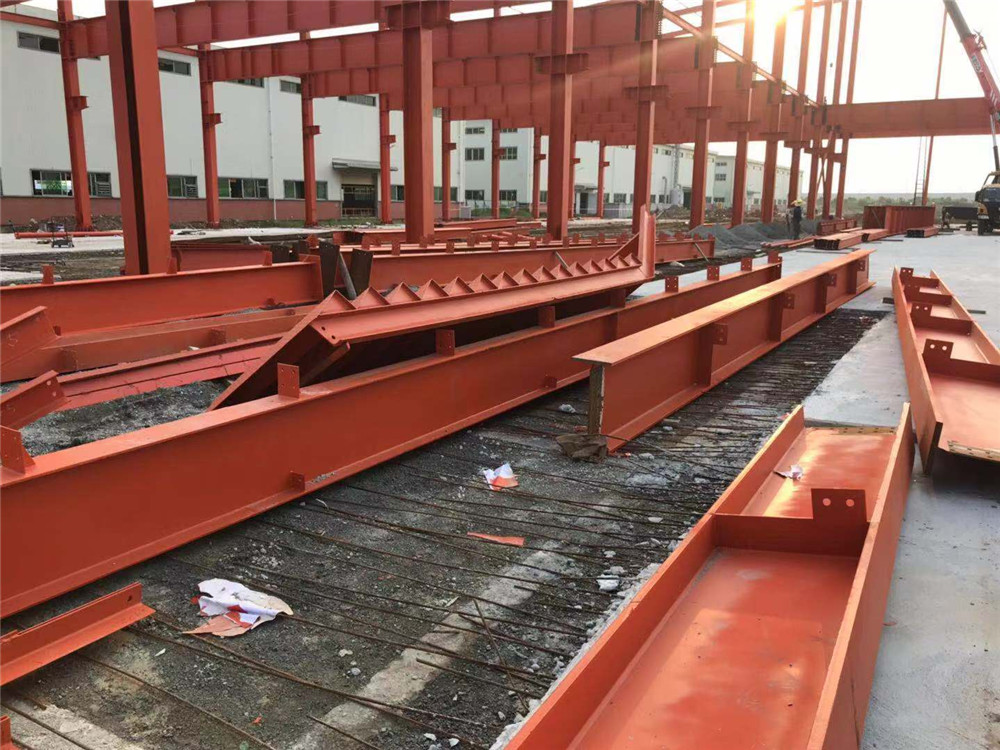

The main components of steel warehosue include steel column, steel beam, wind-proof column and crane beam.
Steel column: It can be a H-shaped steel column with a constant cross-section or a H-shaped steel column with a variable cross-section.
It is easy to manufacture, safe and reliable, and the main material is Q235B or Q345B.
When the horizontal span of the steel workshop building does not exceed 15m and the column height does not exceed 6m, the steel column should be made of H-shaped steel with equal cross section.
When the span of the factory building is greater than 15m and the column height exceeds 6m, the variable-section steel column should be adopted.
Features:
- Product Name: Steel Structure Warehouse
- Drawing design: AutoCAD /PKPM /3D3S/TEKLA
- Material: Q355B/ Q235B Steel
- Size: Customized
- Windows: Aluminum/PVC
- Surface: Painted/Galvanized
- Key Features:
- Steel Building Warehouse
- Metal Warehouse
- Industrial Steel Structure Warehouse
- Customized Steel Warehouse
Technical Parameters:
Steel Structure Warehouse Technical Parameters
| Product Attribute | Value |
| Product Name | Steel Structure Warehouse |
| Wall | Sandwich Panel/Color Steel Sheet |
| Surface | Painted/Galvanized |
| Drawing Design | AutoCAD/PKPM/3D3S/TEKLA |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
| Doors | Roller Shutter/Swing/Sliding |
| Roof | Slope/Flat |
| Size | Customized |
| Material | Q355B/Q235B Steel |
| Windows | Aluminum/PVC |
| Crane | According to Customer Requirements |
| Key Features | Steel Construction, Steel Storage Warehouse, Structural Steel Building |
Applications:
The Steel Structure Warehouse is suitable for a variety of applications, including:
- Industrial storage
- Commercial storage
- Manufacturing facilities
- Distribution centers
- Logistics warehouses
- Agricultural storage
Steel Structure Shed
The warehouse can be used as a steel structure shed, providing a secure and organized storage space for industrial equipment, machinery, and materials. It can also be used as a workshop or production area, with customizable features to meet specific needs.
Industrial Steel Structure
The warehouse is an ideal solution for industrial storage needs, providing ample space for storing large quantities of goods and materials. Its sturdy steel structure can withstand heavy loads and harsh weather conditions, making it suitable for various industries.
Prefabricated Warehouse
The Steel Structure Warehouse is prefabricated, meaning it is manufactured off-site and then assembled on-site. This allows for a faster and more efficient construction process, reducing labor and material costs.
Conclusion
Packing and Shipping:
1. Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hung with tags.
2. Fasteners are packed in wooden cases
3. The upper layer of the color-coated roof and wall panel is covered with plastic film, and the maintenance edge is wrapped with plastic film and labelled.
4. Container type: 40ft HC, 20ft GP
Design Parameters:
We could design for you according to your requirements, meanwhile, you should provide us the following information:
1. Whether have any drawings?
2. Length, width, height, eave height,etc
3. Load conditions( Including wind load, snow load, raining condition, seismic conditions.
4. Demands for doors and windows
5. Other information if necessary
